The SP-6600 is a next-generation optical network platform designed for high-capacity and multi-service access. It has High Integration, Port Density and Efficient Signal Transmission. The SP-6600 is the optimal solution to address the challenges of limited optical cable resources while delivering flexible and disaster-resistant network capabilities. This summary effectively highlights the product's key attributes and its relevance across various industries.

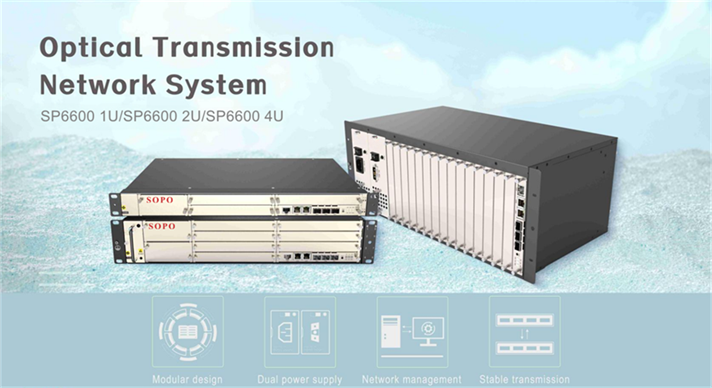

Product Picture

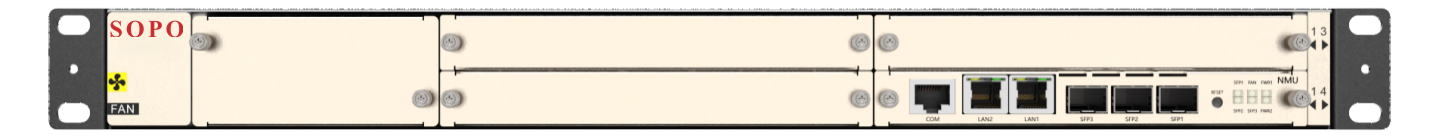

1U Chassis Front

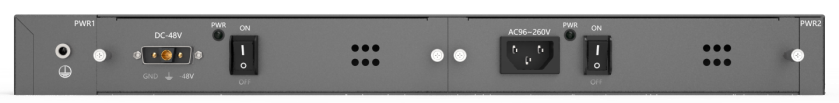

1U Chassis Back

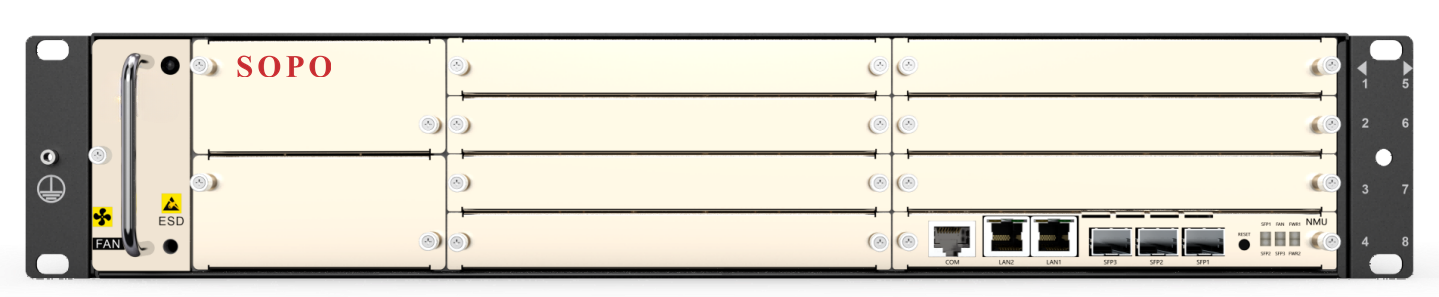

2U Chassis Front

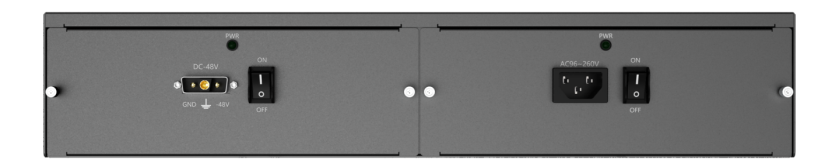

2U Chassis Back

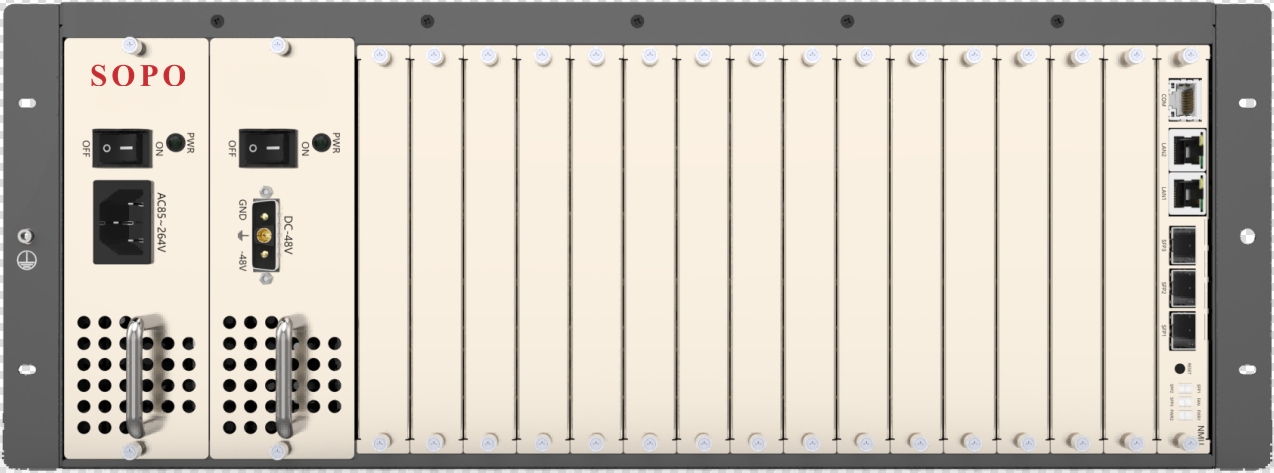

4U Chassis Front

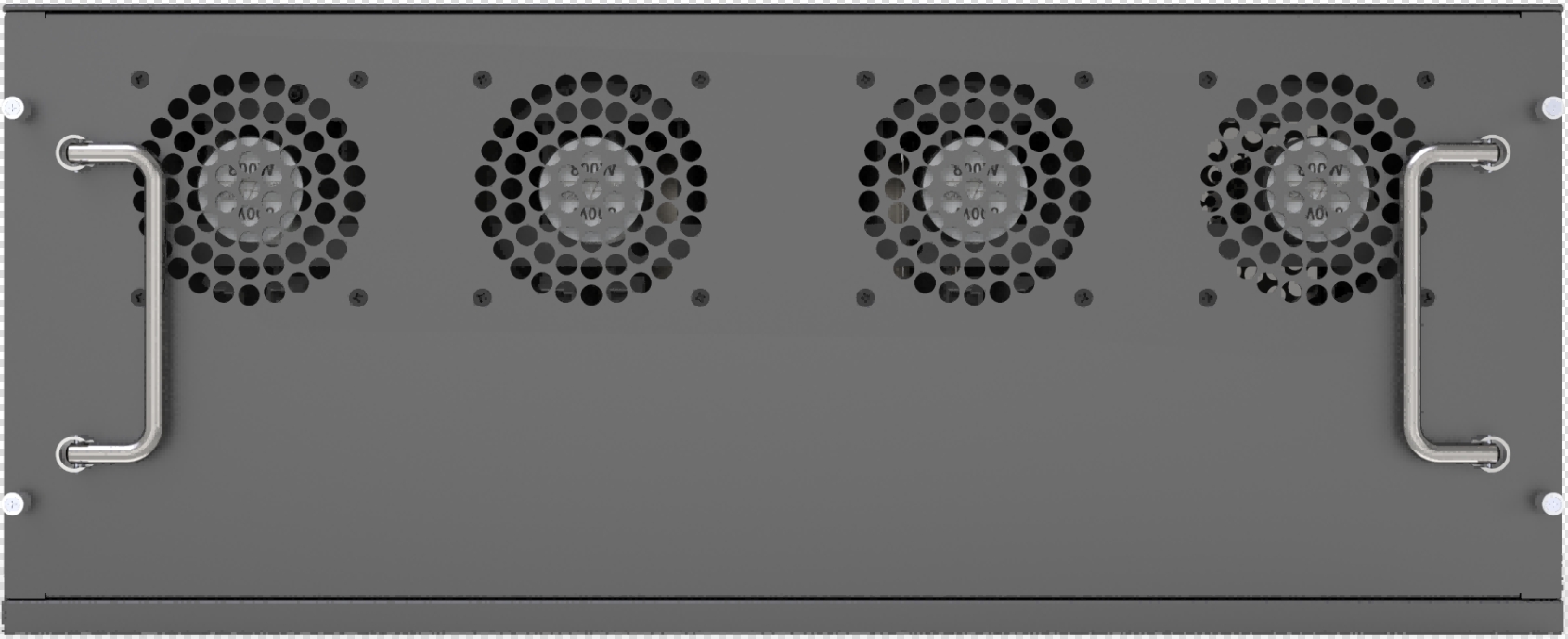

4U Chassis Back
Product Features
1.Flexible networking with a compact footprint and strong scalability.
2.Supports hot-swappable CWDM/DWDM/EDFA/OLPS/OTAP service cards.
3.Supports access to various services such as SDH, SONET, Ethernet, SAN, OTN, and Video.
4.Supports maximum single-channel rates of 100G, 200G, 400G.
5.Supports various networking configurations, including point-to-point, point-to-multipoint, and ring topologies, with options for single-fiber or dual-fiber bidirectional transmission.
6.Supports interoperability with client devices from different vendors, including single-mode (1310nm/1550nm), multimode (850nm/1310nm), and Ethernet ports (RJ45), enabling optical add-drop multiplexing (OADM) functionality and wavelength conversion at intermediate nodes.
7.Supports SNMP-based unified network management platform with management options including CLI (telnet and console), web interface, and NetView(graphical interface).
8.Supports 1+1 hot-swappable redundant power backup with options for both AC and DC power sources.
Product Specifications
|
System Parameters |
1U Chassis |
2U Chassis |
4U Chassis |
|
|
Device Dimensions (mm) |
482(W)×44(H)×320(D) |
486(W) ×86(H)×352(D) |
483(W)×178(H)×280(D) |
|
|
Number of Service Slots |
4 slots |
8 slots |
16 slots |
|
|
Power Consumption |
<120W |
<200W |
<300W |
|
|
Wavelength Range |
DWDM:1529.16nm~1567.14nm CWDM:1271nm~1611nm |
|||
|
Channel Spacing |
50/100 GHz fixed 37.5-400 GHz flex-grid |
|||
|
Supported Service Types |
SDH, SONET, Ethernet，SAN，OTN，Video |
|||
|
Maximum Single-Channel Rates |
100G, 200G, 400G |
|||
|
Optical Interface Transmission |
Supports 2R transmission mode for transparent transmission between 32M and 111.81Gbit/s. Supports 3R transmission mode with optional rates including 155Mbit/s, 622Mbit/s, 1.25Gbit/s, 2.488Gbit/s, 4GFC, 8GFC, 10GFC, 11.3Gbit/s, 25Gbit/s, 40Gbit/s, 56Gbit/s, 100Gbit/s, 200Gbit/s, and 400Gbit/s. |
|||
|
Network Topology |
Point-to-point, ring, star, chain, tangent ring, mesh |
|||
|
Network Management |
CLI、 NetViver、Web |
|||
|
Environmental Requirements |
Operating |
-10℃~50℃ |
||
|
Storage |
-40℃~80℃ |
|||
|
Relative Humidity |
5%~95% non-condensing |
|||
|
Power Requirements (Typical) |
AC Power Supply: Voltage Range: 90V~264V, 50/60Hz DC Power Supply: Voltage Range: -36V~60V |
|||
|
Safety and EMC Compliance |
Meets FCC, UL, CE, TUV, CSA standards |
|||
Order Information:
|
Product No. |
Product description |
|
SP-6600A |
1U Rack，4-Slot,Fans Unit, Daul power(AV90~ 264V or DC -48~ -60 V), 482(W)×44(H)×320(D) |
|
SP-6600B |
2U Rack，8-Slot,Fans Unit, Daul power(AV90~ 264V or DC -48~ -60 V), 486(W) ×86(H)×352(D) |
|
SP-6600C |
4U Rack，16-Slot,Fans Unit, Daul power(AV90~ 264V or DC -48~ -60 V), 483(W)×178(H)×280(D) |
