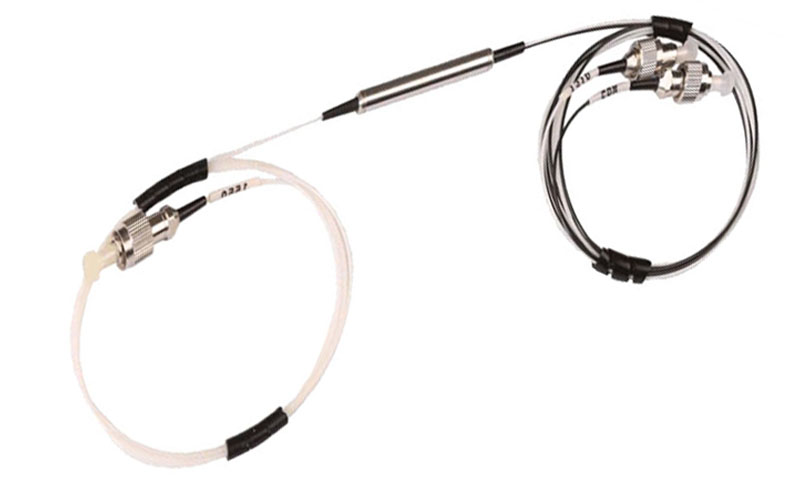

SOPO Micro-Optics WDM utilizes thin film coating technology and proprietary design of non-flux metal bonding micro optics packaging. It provides low insertion loss, high channel isolation, low temperature sensitivity and epoxy free optical path.
Features:
Wide Operating Wavelength Range
Low inertion loss
Ultra Flat Wide Passband
High Channel Isolation
High stability and reliability
Epoxy-free on Optical Path
|
Parameter |
FWDM 5/4 |
FWDM 61/5 |
FWDM 5/9 |
|
|
Pass Band Wavelength Range（nm） |
1530~1565 |
1600~1670 |
1525~1600 |
|
|
Reflect Band Wavelength Range（nm） |
1450~1490 |
1260~1580 |
965~1000 |
|
|
Insertion Loss（dB） |
Reflect Channel |
≤0.5 |
≤0.6 |
≤0.7 |
|
Pass Channel |
≤0.6 |
≤0.8 |
≤0.9 |
|
|
Insertion Loss Variation（dB） |
<0.3 |
|||
|
Isolation @Add/Drop Channel（dB） |
Reflect Channel |
>15 |
>15 |
>15 |
|
Pass Channel |
>25 |
>35 |
>30 |
|
|
Inertion Loss Temperature Sensitivity(dB/℃) |
<0.005 |
|||
|
Polarization Dependent Loss（dB） |
<0.1 |
|||
|
Polarization Mode Dispersion（ps） |
<0.1 |
|||
|
Directivity (dB) (Input to add, Output to drop, add to drop（dB） |
>50 |
|||
|
Return Loss（dB） |
>50 |
|||
|
Maximum Power Handling（mW） |
500 |
|||
|
Opterating Temperature (℃) |
-20~+70 |
|||
|
Storage Temperature(℃) |
-40~+85 |
|||
|
Fiber Type |
Corning SMF-28e fiber |
Corning HI 1060 fiber at Common & Reflection port, SMF-28e fiber at |
||
|
Package Dimention(mm) |
Φ5.5x34,Φ5.5x38 (900um Loose tube) |
|||
1、Above specifications are for devices without connector.
2、Specifications may change without notice.
